Loading bay with lamp on arm and traffic light

Logistics · loading bays

Loading bay accessories dock lights and selector

Light inside the trailer, order outside: dock lights and a selector for the bay traffic lights.

20–50 WLED lamps
100–277 VAC, lamps
IP65lamps and arms
100–150 cmarticulated arms
ASFSW230230 V selector

Available configurations

Lamps and arms.

Two components for a safe bay: the lamp that lights up the trailer and the arm that positions it where needed.

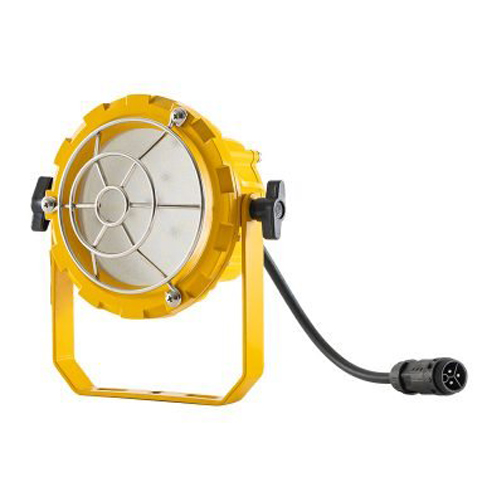

ALPDC30 · round 30 W
ALPDC30 · round 30 W
Standard bays
ALPDC50 · round 50 W
ALPDC50 · round 50 W
Long trailers, dark environments
ALPDF20 · flexible 20 W
ALPDF20 · flexible 20 W
Focused light beam

At a glance

What Stagnoli loading bay accessories are

Stagnoli loading bay accessories make loading and unloading faster and safer. The LED dock lights (20 W flexible, 30 or 50 W round) light up the inside of the trailer, mounted on articulated arms.

Lamps
ALPDC30 · ALPDC50 · ALPDF20
Power
30 W · 50 W · 20 W
Lamp power supply
AC 100–277 V
Protection
IP65
Arms
100 or 150 cm, single or double
Arm models
ALPDB100S · ALPDB150S · ALPDB100D · ALPDB150D

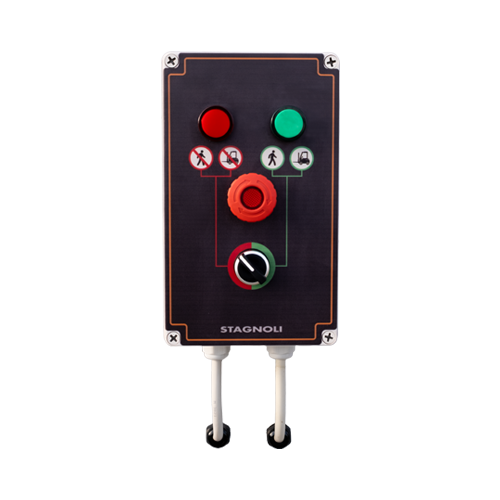

ASFSW230 loading bay selector: red and green indicator lights, emergency mushroom button and two-way selector switch

Loading bay selector

ASFSW230

Designed to optimise logistics flows, ASFSW230 is the control interface for the inside traffic light: clear, immediate communication between warehouse staff and truck drivers.

  • Red and green indicator lightsThey act as the inside traffic light and show the opposite state of the outside traffic light.
  • Two-way selector switchSets the state of the bay traffic lights.
  • Emergency mushroom buttonTriggers the emergency state on the whole system: ASFSW230 and the outside traffic light turn red.
Green outside
The driver pulls in or leaves; red inside
Green inside
The vehicle is stationary, the forklift operator enters; red outside
Power supply
230 V ac
Current draw
0.02 A
Power
4.6 W
Operating temperature
−10 / +60 °C
Traffic light output
230 V, red and green
Dimensions
150 × 250 × 130 mm
Mounting
Warehouse side
Recommended traffic lights
Chronos · Apollo

The two bay traffic lights are always in opposite states: never two greens.

Fields of application

Where they are installed.

In logistics centres, freight terminals and warehouses with loading bays.

Bays with traffic lights

Bays with traffic lights

One selector per bay, next to the door control: traffic lights, selector and lamp work together.

ASFSW230 + CHR2LRV + ALPDC30 + ALPDB100S
Manual and forklift loading

Manual and forklift loading

Light inside the trailer for faster, safer loading.

ALPDC50 + ALPDB100D
Loading bays seen from outside

Yards and freight terminals

The driver can read the bay status before pulling in.

ASFSW230 + CHR2LRV

Frequently asked questions

Dock lights and ASFSW230 selector, in practice.

What is a dock light for?

To properly light the inside of the trailer, so that operators can work at their best, with greater safety thanks to better visibility.

What wattage should I choose?

30 W (ALPDC30) for standard bays, 50 W (ALPDC50) for long trailers or very dark settings; the 20 W flexible ALPDF20 where a compact light point is needed.

How are the circular lamps installed?

Circular lamps mount on ALPDB articulated arms, single or double, 100 or 150 cm.

What is the ASFSW230 loading bay selector for?

By combining 2 indicator lights (red and green) and a selector in one product, it makes managing loading and unloading at loading bays simple and practical. Besides the ASFSW230, you only need to install the external traffic light (230 Vac), freely chosen from our available models.

How many traffic lights does the ASFSW230 selector control?

Two: the internal traffic light (itself, through its 2 indicator lights) and the external one of the same bay, always in opposite states.

Which traffic lights go with the ASFSW230 selector?

Any 230 Vac traffic light, for example Chronos (CHR2LRV) or Apollo (ASF25L2RV230), to be installed outside.
