Garage access ramp with two-way traffic regulated by traffic lights

Control unit for 2 traffic lights

ACNSEM3L controller for 2 traffic lights

One board for 2 traffic lights, 12 to 230 V. For alternating one-way systems.

2traffic lights, 2 or 3 lights
12–230 Vtraffic lights
LCD5 languages
IP44enclosure
−20/+60 °Coperating
IN3emergency

Available configurations

Booking, time-based or mixed.

ACNSEM3L switches two 2- or 3-light traffic lights, from 12 to 230 V, and is programmed from the LCD display in five languages.

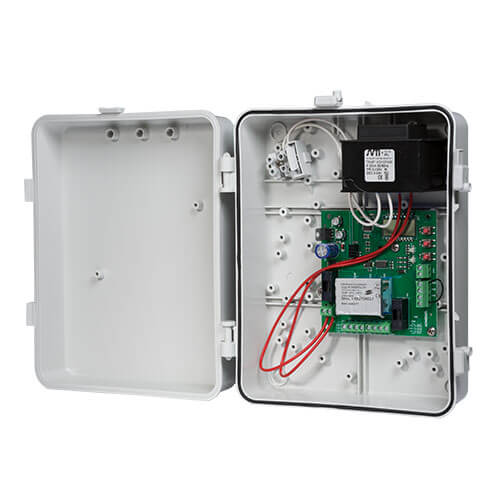

ACNSEM3L control unit open showing the circuit board
Booking
The cycle starts when the sensors are activated (NO/NC)
Time-based
Autonomous cycle on the set times
Mixed
Automatic switching with priority to the inputs

Voltage

24 V o 230 V.

The board works at 24 V ac/dc; the ACNSEM3L230 kit adds the mains transformer. The traffic lights can be 12–24 V or 230 V.

24V
Board only

Cycle times, terminal block and sensor wiring in the documentation.

Find out more

At a glance

What is the ACNSEM3L control unit

ACNSEM3L is Stagnoli's control unit for 2 two- or three-light traffic lights, designed for alternating one-way systems in apartment blocks (slopes and ramps), companies and car parks. The microprocessor board has an LCD display in 5 languages to program all cycle times, works in booking mode, time-based or in mixed mode and switches 12–24 V or 230 V traffic lights. It has a dedicated emergency input and an IP44 enclosure.

Traffic lights
2, with 2 or 3 lights
Traffic light supply
12–24 V o 230 V
Board
24 V ac/dc (230 V as kit)
Display
LCD, 5 languages
Logics
Booking, timed, mixed
Emergency
Dedicated IN3 input
Protection
IP44
Temperature
−20 / +60 °C

Fields of application

Where ACNSEM3L works.

Wherever two vehicle flows have to take turns in the same passage.

ACNSEM3L control unit open on the wall of a residential garage

Residential ramps

Alternating one-way system with custom clearance times.

ACNSEM3L230 + 2 × Chronos
Entrance of a residential garage

Residential and industrial gates

Access controlled with photocells or magnetic loops.

ACNSEM3L + AFAP20 + 2 × ASFRV
Loading bays

Loading and unloading areas

Coordinating heavy vehicle access phases.

ACNSEM3L + DA035 + 2 × ASF25L2RV

Frequently asked questions

ACNSEM3L control unit, in practice.

Which sensors can I connect to the ACNSEM3L control unit?

You can install any sensor capable of opening or closing 1 clean contact (NO/NC) for at least one second.

How many traffic lights can I connect to the ACNSEM3L?

The control unit manages 2 traffic lights, but also works with a single traffic light (in some particular cases, with only one traffic light, there may be "abnormal" behaviour because the unit is designed to always work with 2 traffic lights).

Can the ACNSEM3L control unit work in state mode?

No, it is not possible to select state-based operation. The control unit always works based on the set timings.

Does the ACNSEM3L traffic light terminal block supply power?

No, the power source is external. The control unit is responsible only for switching the colour of the traffic lights.

Can I use gate photocells as input sensors?

Yes, the important thing to keep in mind is that gate photocells do not discriminate the direction of the vehicle.

ACNSEM3L for your one-way system

Describe the ramp or passage: we'll recommend control unit, traffic lights and sensors.
