ERA80 TRAFFIC LIGHT

Easy to install

With ERA80, the installation process is simple thanks to the new fastening systems with a bracket and wall fastening

VERTICAL WITH BRACKET

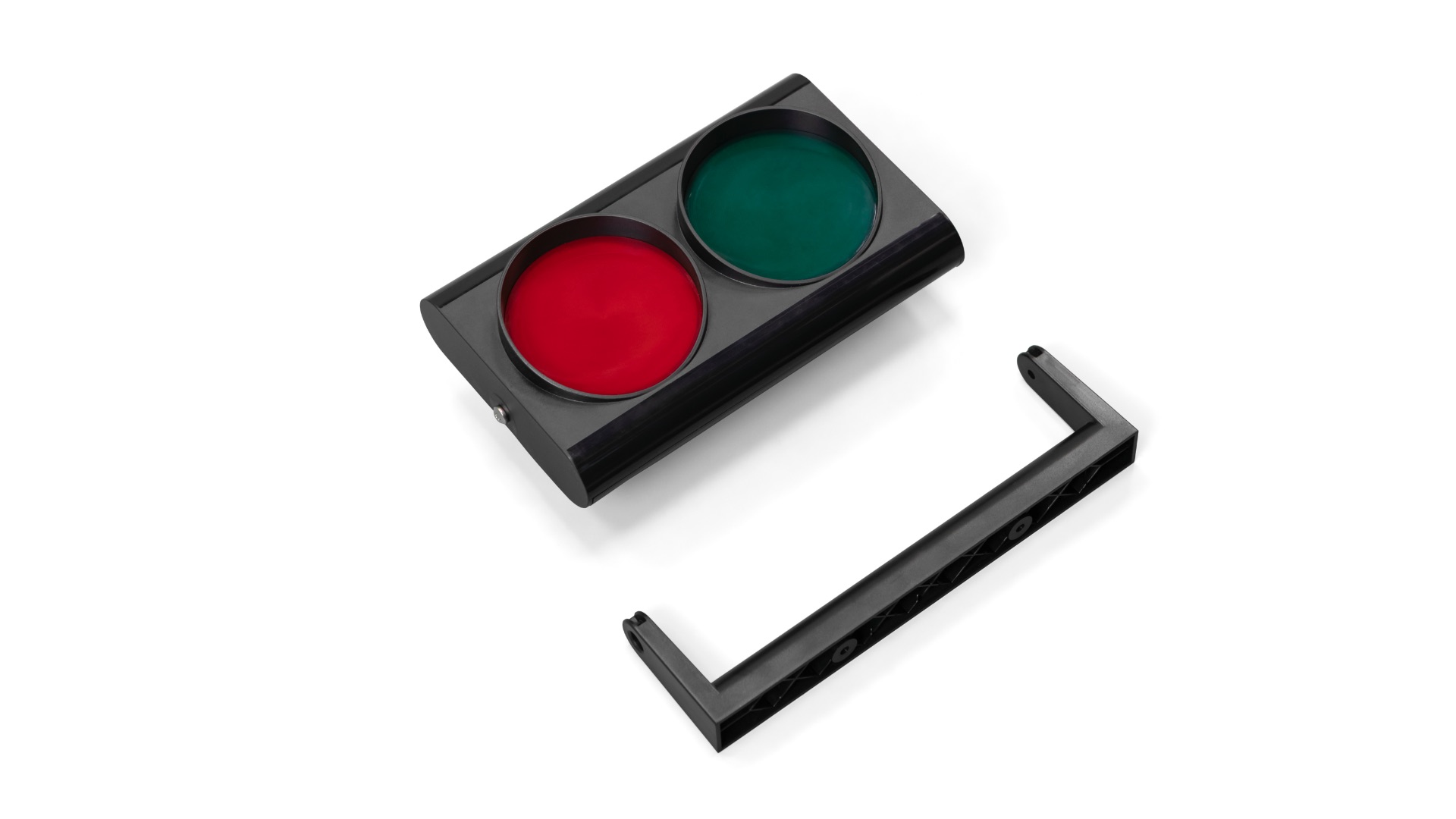

HORIZONTAL WITH BRACKET
VERTICAL WITHOUT BRACKET
HORIZONTAL WITHOUT BRACKET
APPLICATION WITH POLE BRACKET
ERA80 technical drawing vertical traffic light with 65 degree angle bracket

65° angle

ERA80 vertical technical drawing with two screw bracket

2 fastening screws

ERA80 technical drawing of a vertical semaphore

H240mm
L130mm

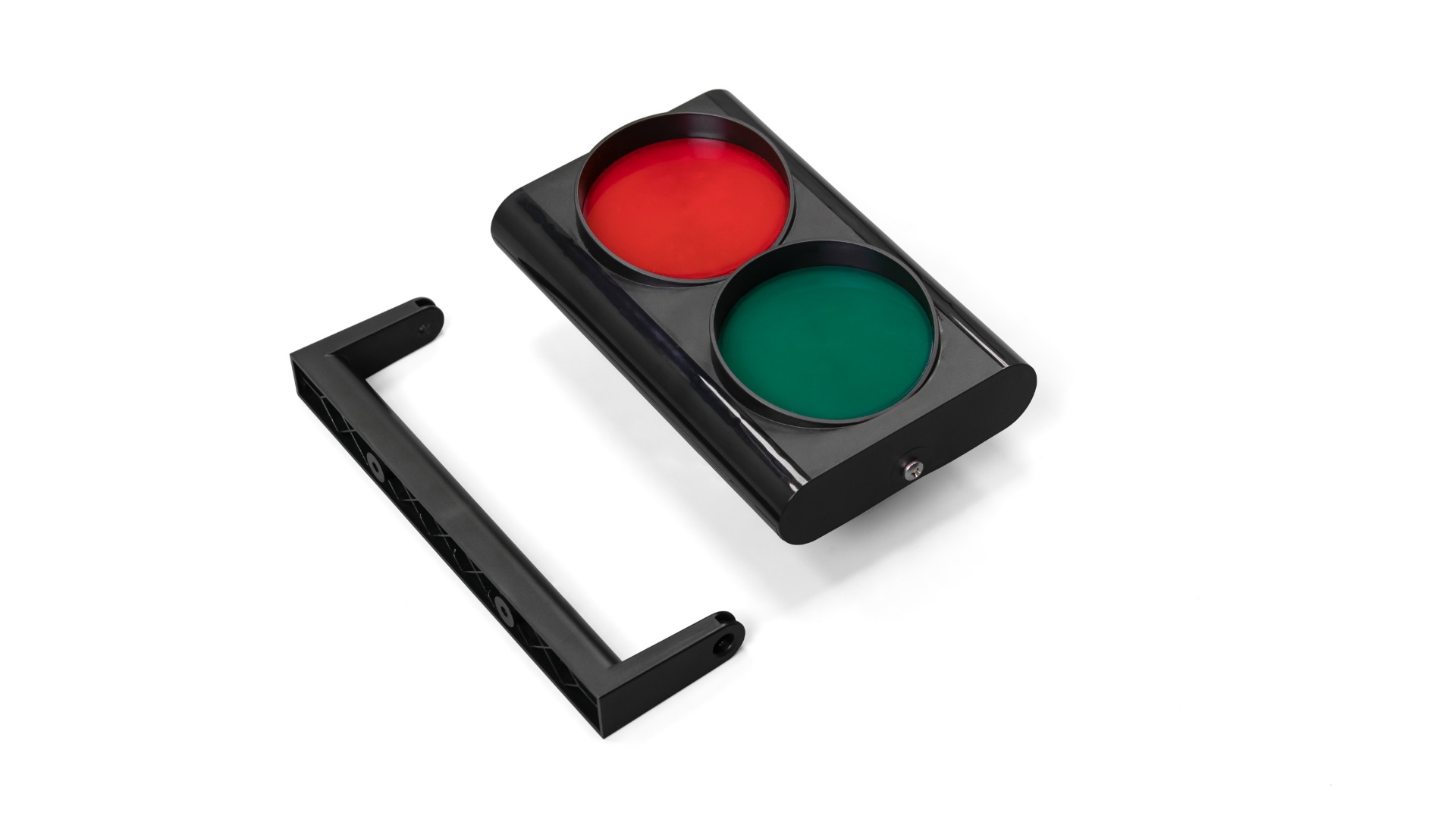

ERA80 2-light vertical traffic light with bracket
ERA80 technical drawing horizontal traffic light with 65 degree angle bracket

65° angle

ERA80 technical drawing horizontal mounting bracket 2 fixing screws

2 fastening screws

ERA80 technical drawing of an orizontal semaphore

H130mm
L240mm

Horizontal semaphore without brackets
ERA80 technical drawing horizontal traffic light with 0 degree angle bracket

0° angle

ERA80 technical drawing vertical part of traffic light without bracket 2 fixing screws

2 fastening screws

ERA80 technical drawing of a vertical semaphore

H214mm
L130mm

ERA80 Vertical semaphore without brackets
ERA80 technical drawing vertical traffic light with 0 degree angle bracket

0° angle

ERA80 technical drawing horizontal part of traffic light without bracket 2 fixing screws

2 fastening screws

ERA80 technical drawing of an orizontal semaphore

H130mm
L214mm

ERA80 horizontal semaphore without brackets
ERA80 technical drawing traffic light with pole bracket angle 0 degrees

0° angle

ERA80 technical drawing application with pole bracket 2 fixing screws

2 fastening screws

ERA80 technical drawing of a vertical semaphore

H230mm
L130mm

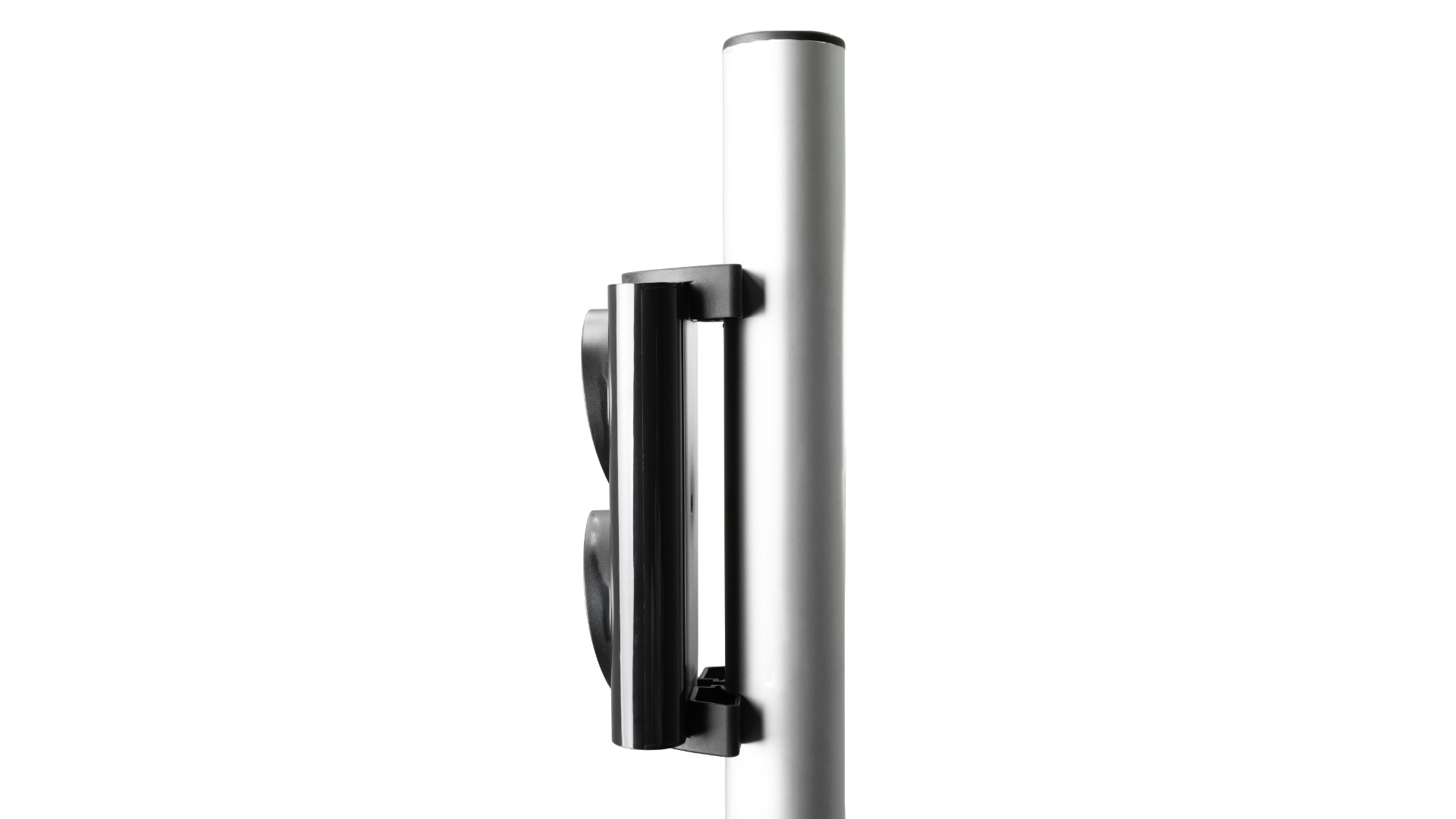

ERA80 traffic light with brackets for pole application

Product details

ERA80 exploded view of the inside of the traffic lights

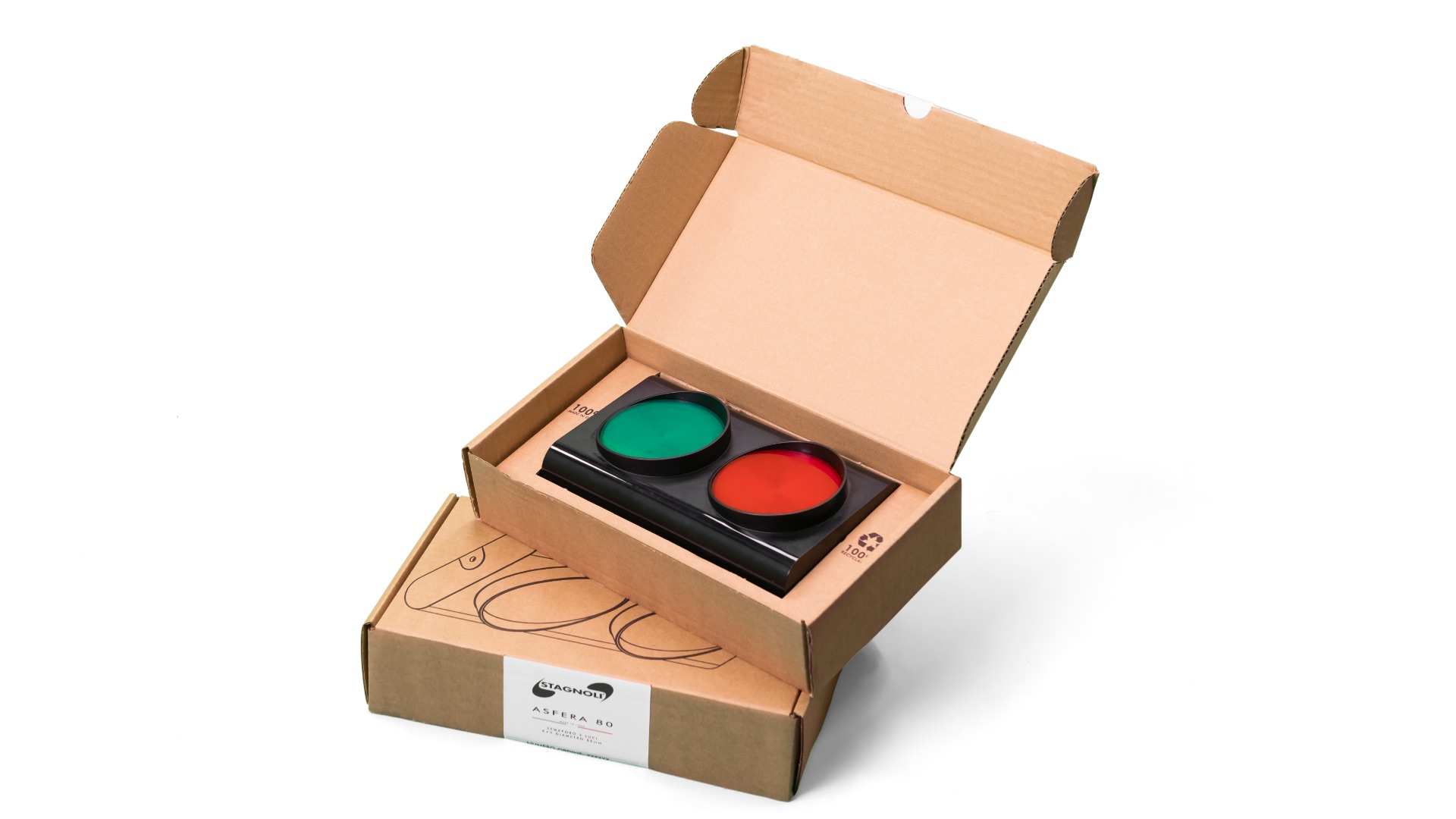

Your sustainable ally

Our commitment to create a more sustainable environment began
with the objective of using renewable energy and top quality recyclable materials.

Models

VERTICAL
HORIZONTAL
2-light ERA80 vertical traffic light
2-light ERA80 horizontal traffic light

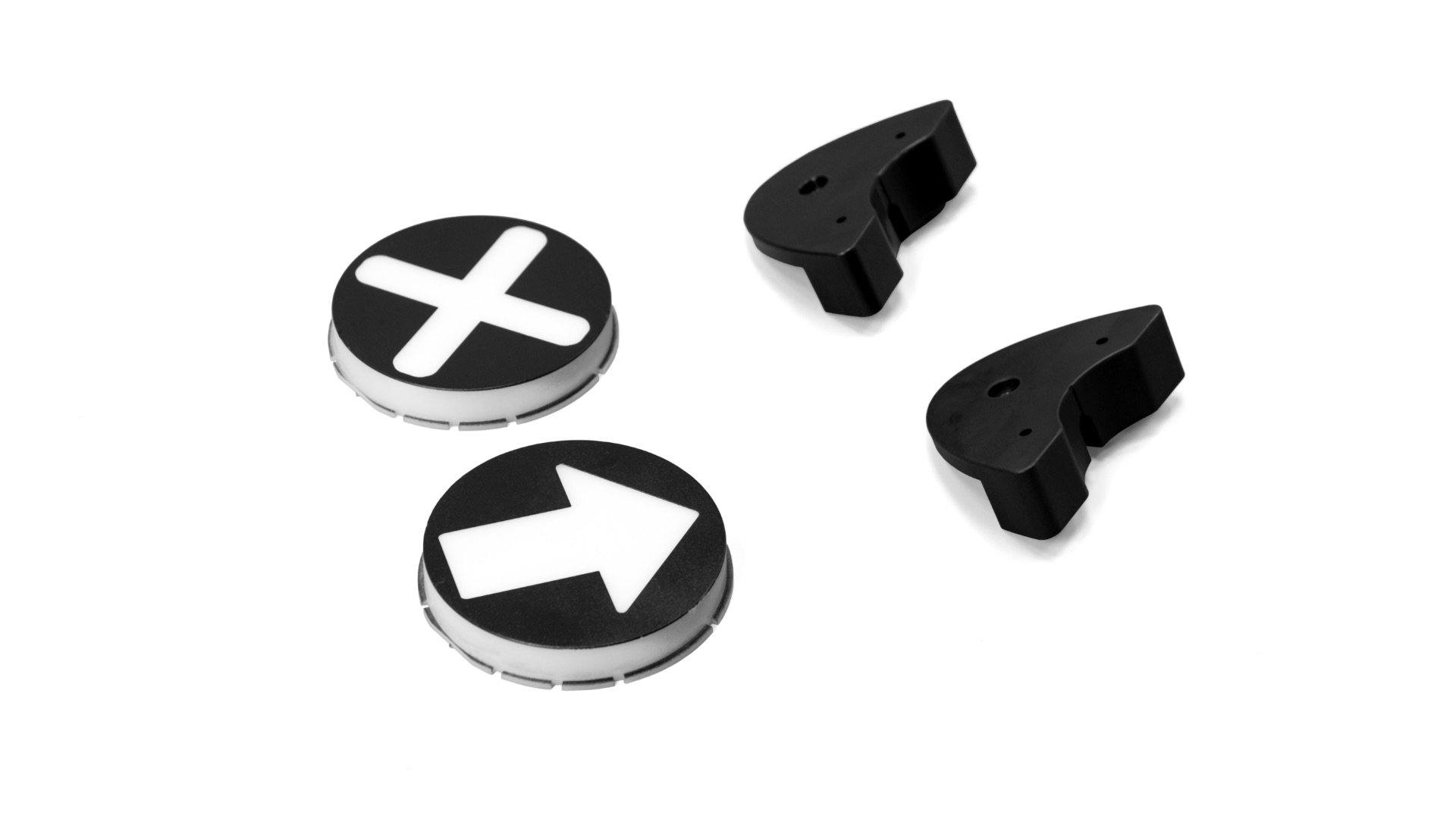

Accessories

Brackets for pole fastening

ASFERA80SP

Brackets for pole fastening

Directional lens kit

ASFERA80LD

Directional lens kit

Galvanised pole (60mm)

APS

Galvanised pole (60mm)

Technical details

  2-light ASFERA80 vertical traffic light 2-light directional vertical traffic light ASFERA80D horizontal traffic light 2 lights ASFERA80 2-light directional horizontal traffic light ASFERA80D
TECHNICAL DATA
ASFERA80
Vertical 2-light traffic light
ASFERA80D
Directional vertical 2-light traffic light
ASFERA80O
Horizontal 2-light traffic light
ASFERA80OD
Directional horizontal 2-light traffic light
Power Supply 24V 24V 24V 24V
Absorbed rated current 0,13A 0,13A 0,13A 0,13A
Power 1,50W 1,50W 1,50W 1,50W
Luminosity 120Lx (+10Lx) 120Lx (+10Lx) 120Lx (+10Lx) 120Lx (+10Lx)
Working temperature -20 / +55° -20 / +55° -20 / +55° -20 / +55°;
IP 56 56 56 56
Number of leds 40 40 40 40
